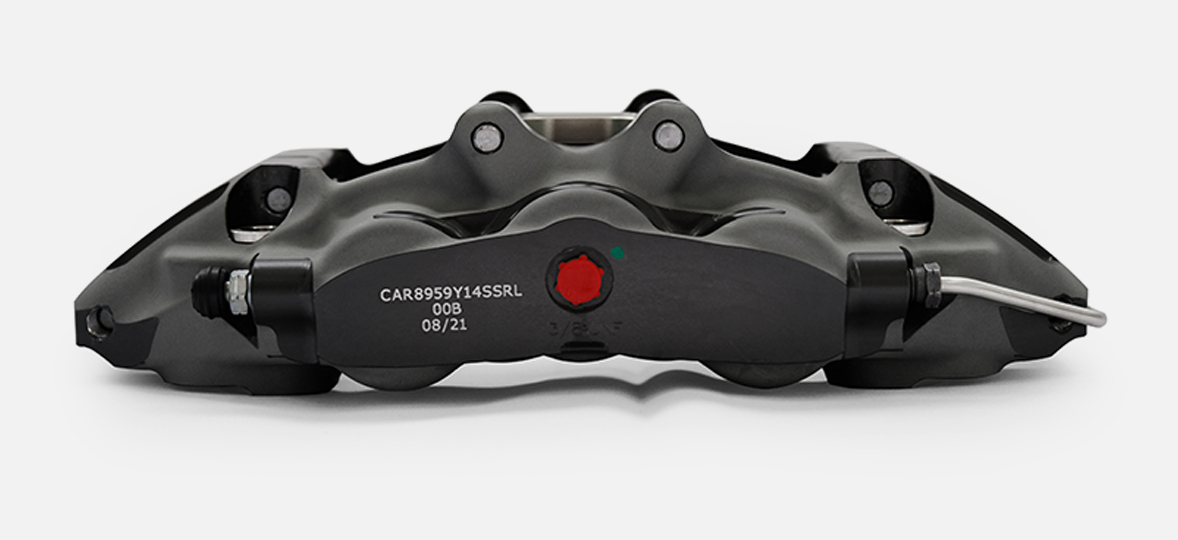

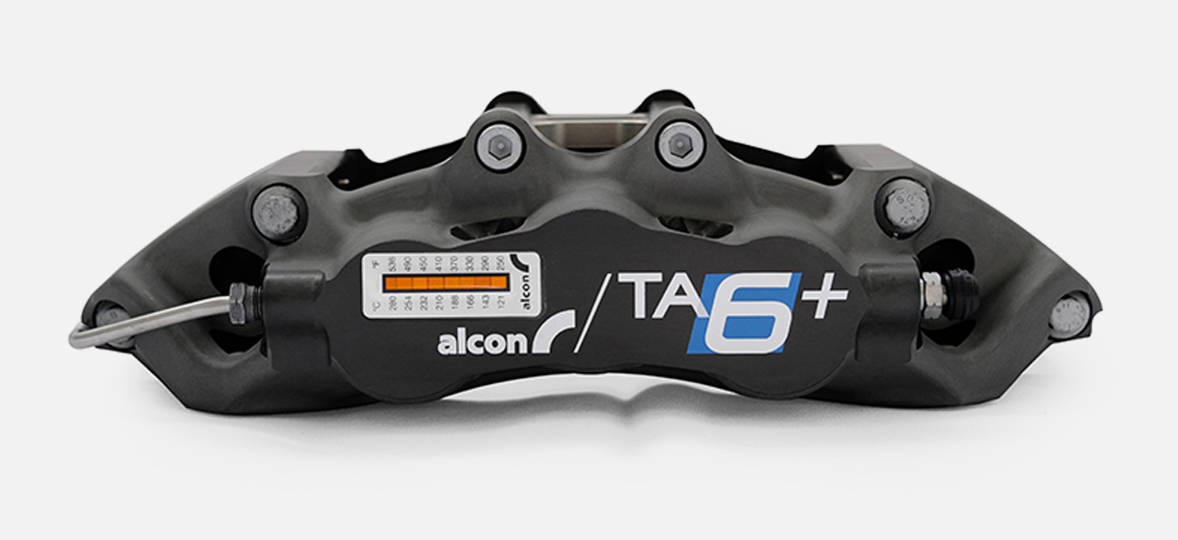

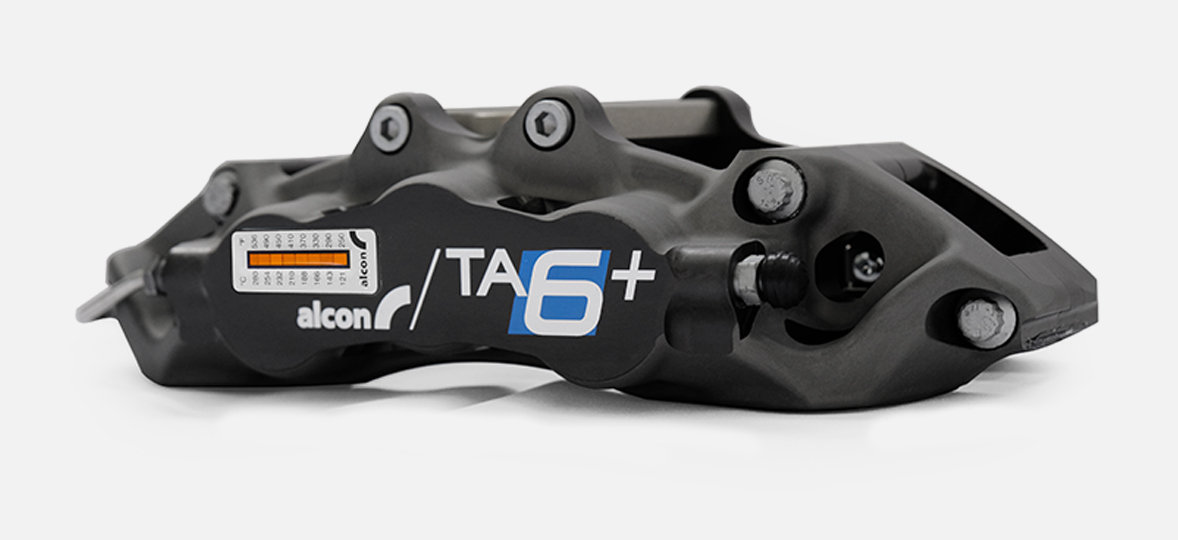

Forged aerospace aluminum provides high strength and light weight
Design optimized to improve cooling
Differential piston diameters minimize pad taper

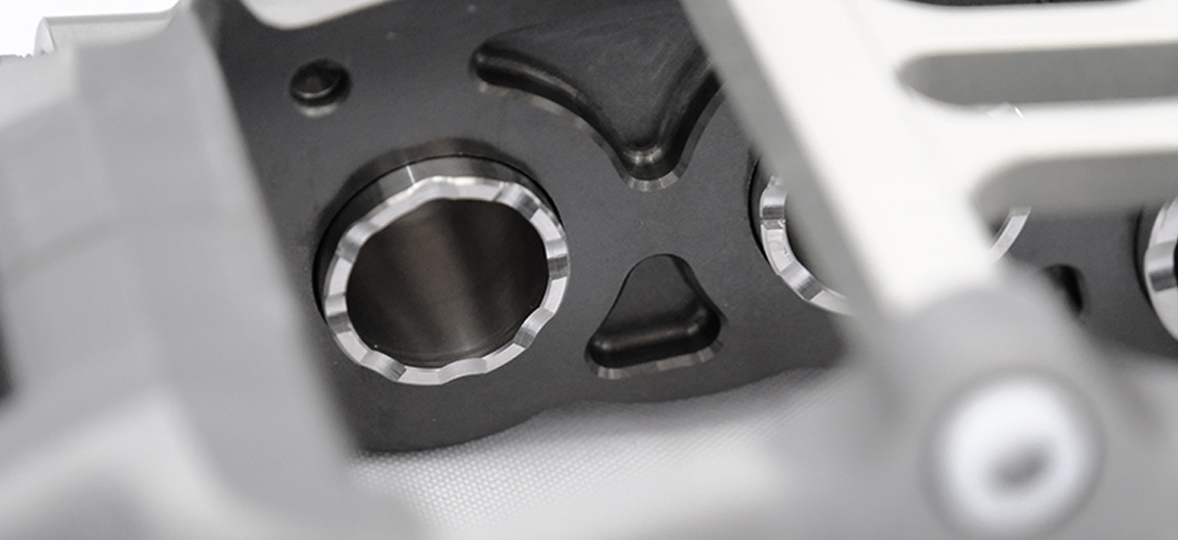

Ventilated stainless steel pistons with low friction coating
Hard steel wear plates

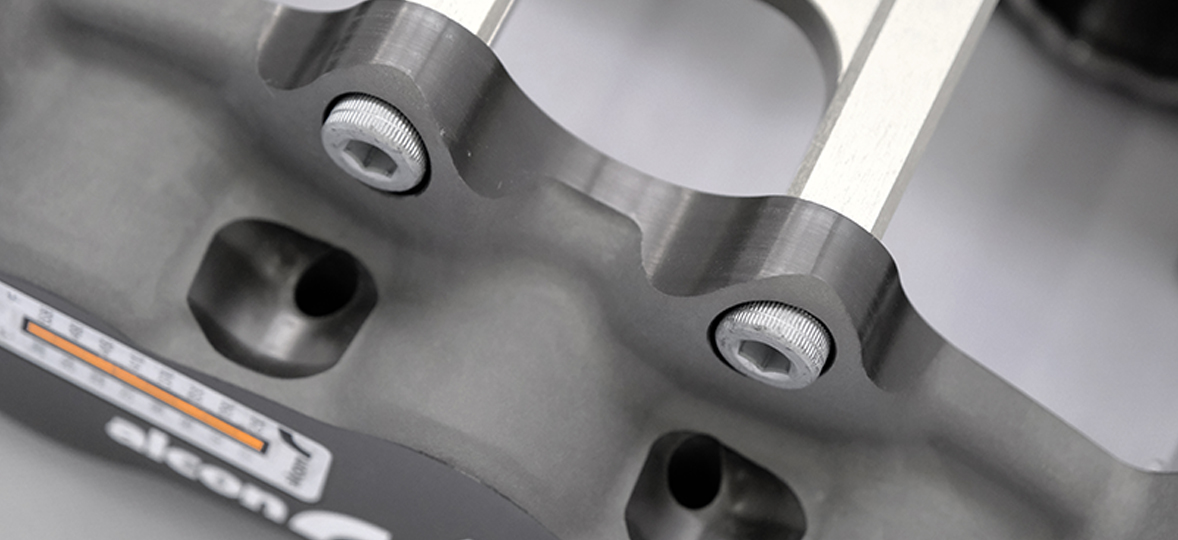

Bolted pad retainer to increase stiffness
Rotor diameter range 13” – 14” (ø332 – 355mm).
Rotor thickness range 1.25” – 1.42” (32 – 36mm).
Fluid inlet 3/8” – 24 UNF (-3)
Dry weight 6.62lb (3.00kg)
Alcon pad reference: 4489, 20mm thick
