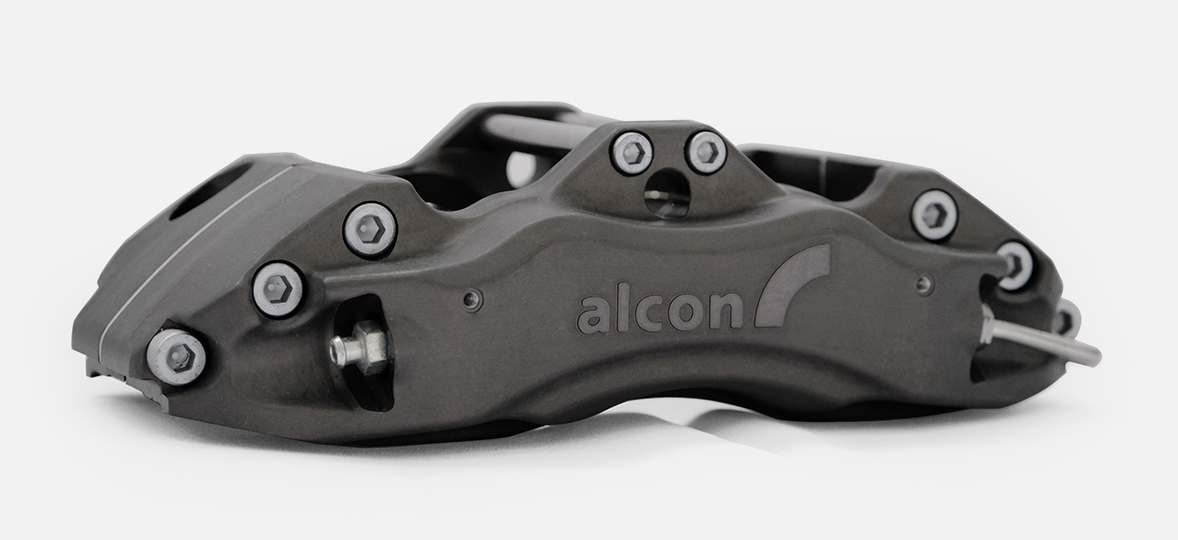

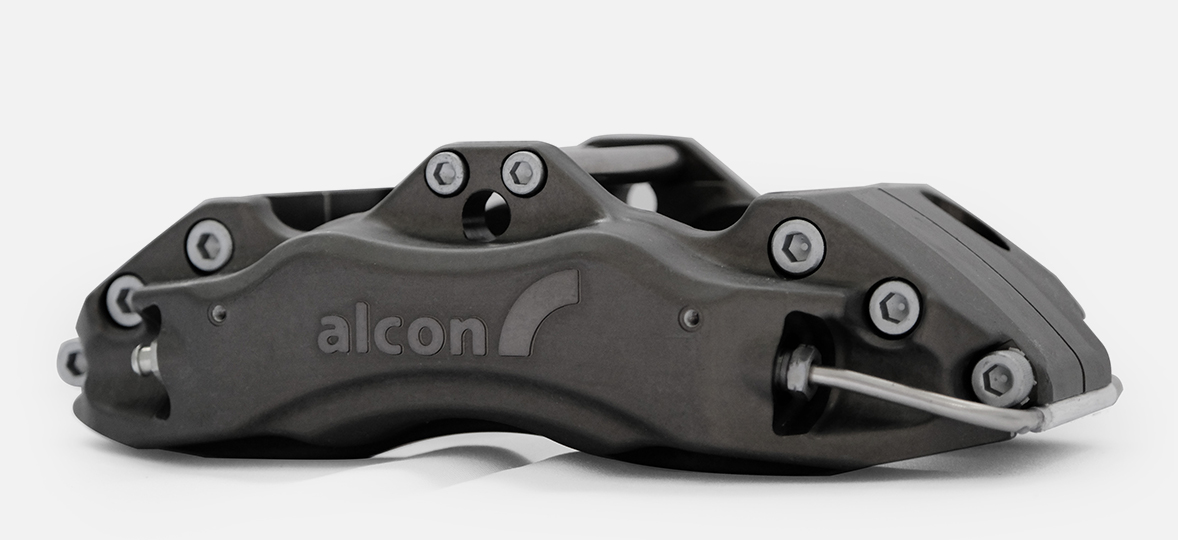

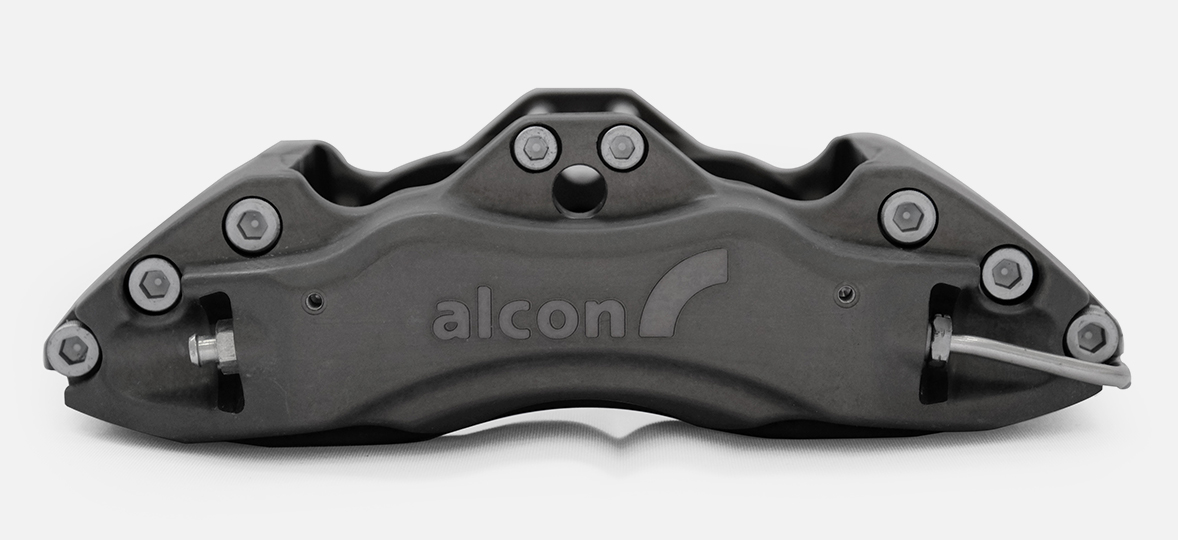

Radial mount for maximum rigidity and firm, consistent pedal
Differential piston diameters to minimise pad taper wear

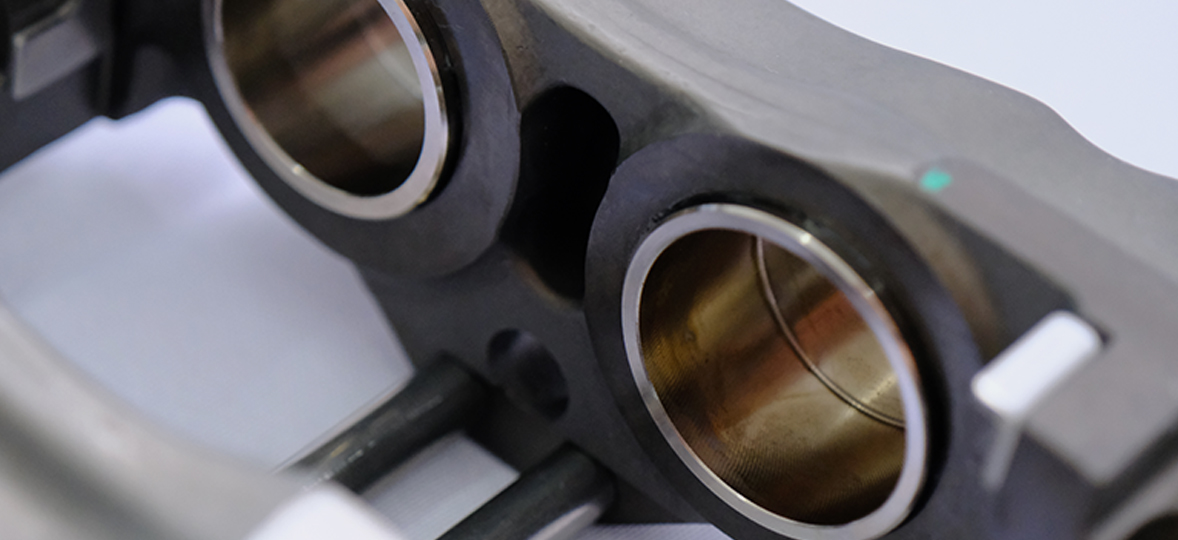

Aluminium pistons as standard, stainless steel pistons available as an option to reduce heat transfer to brake fluid
2kg anti-knock back springs

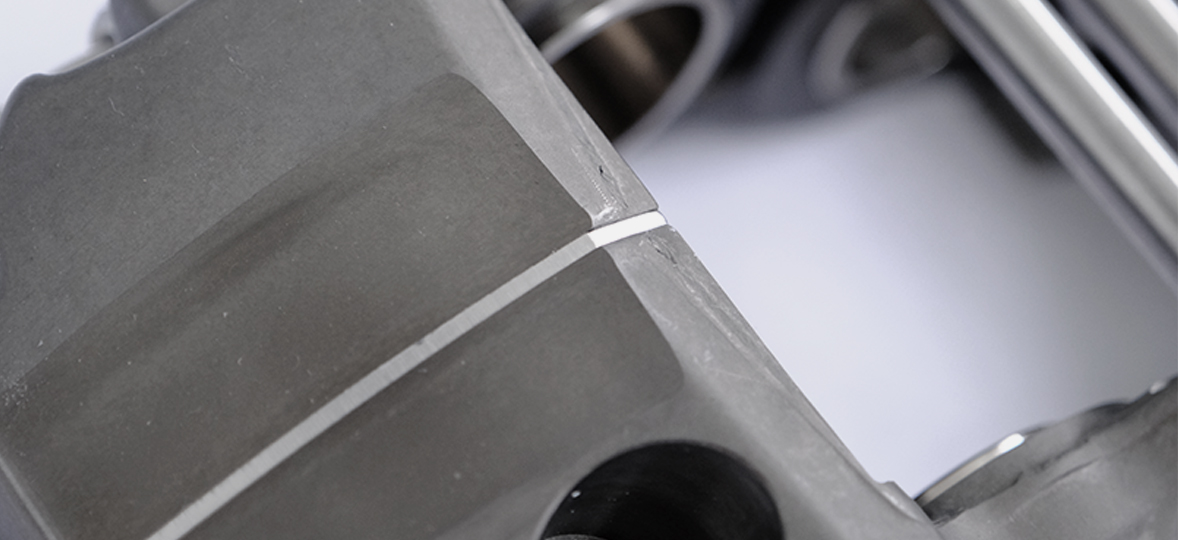

Hard stainless steel wear plates
Fixed pad retainer bars to increase stiffness, remove caliper to change pads
Disc diameter range Ø280 – 343mm
Disc thickness range 28 – 32mm

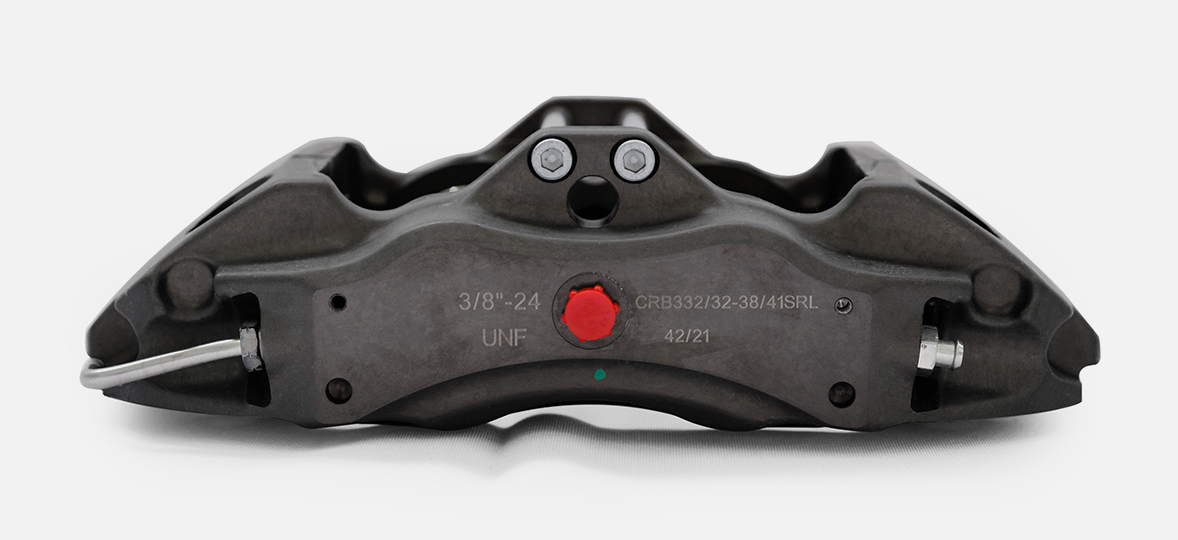

Fluid inlet 3/8-24 UNF (-3) female
Dry weight 2.40kg excluding pads
Alcon pad reference 4441 or 4423, 16mm thick, 132mm long, 50mm deep, area 133cm2 per caliper
