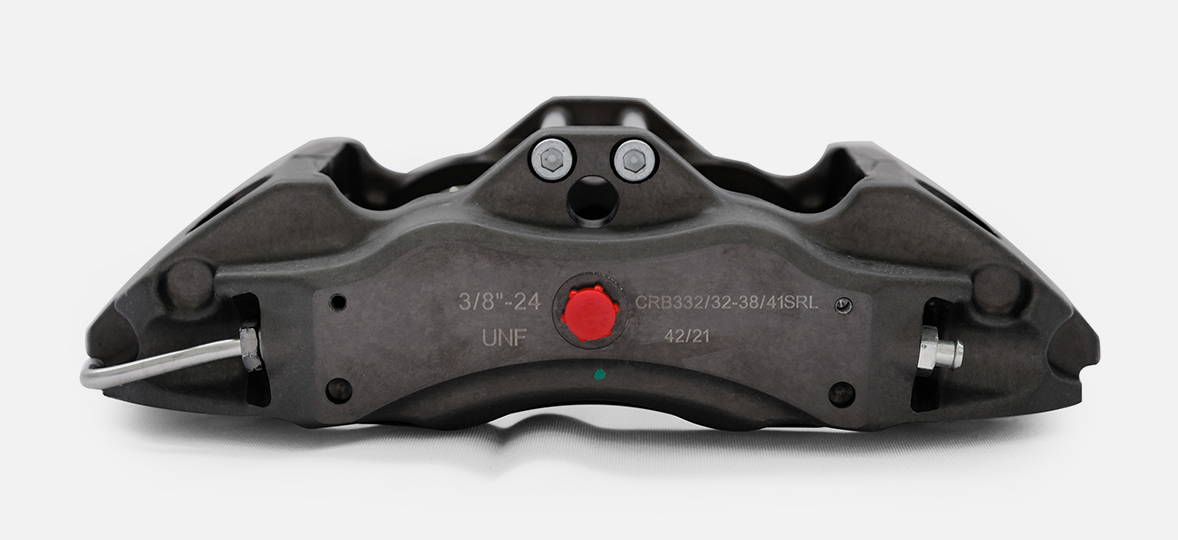

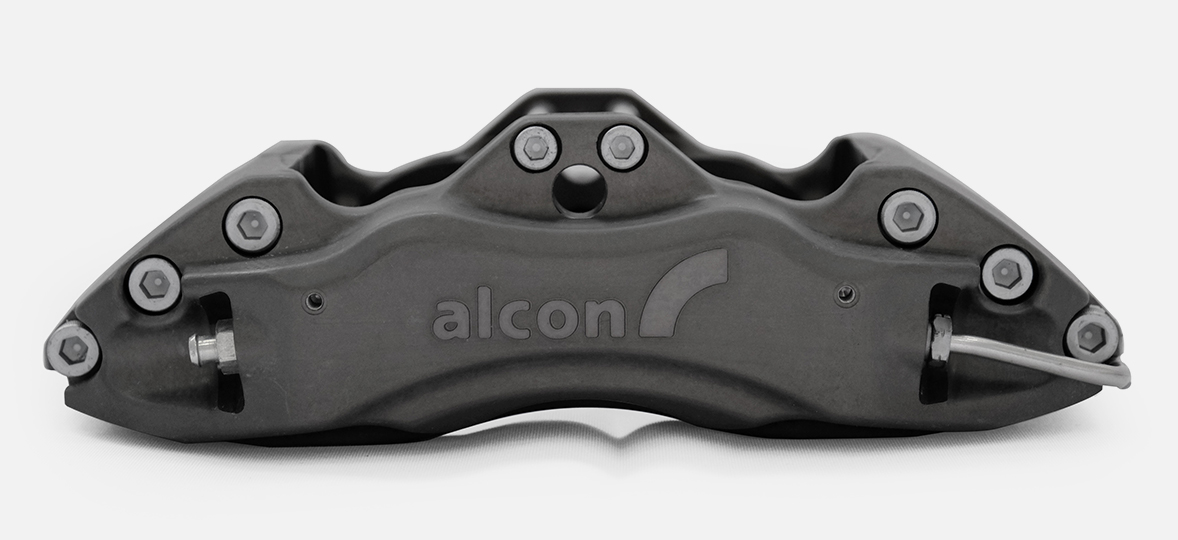

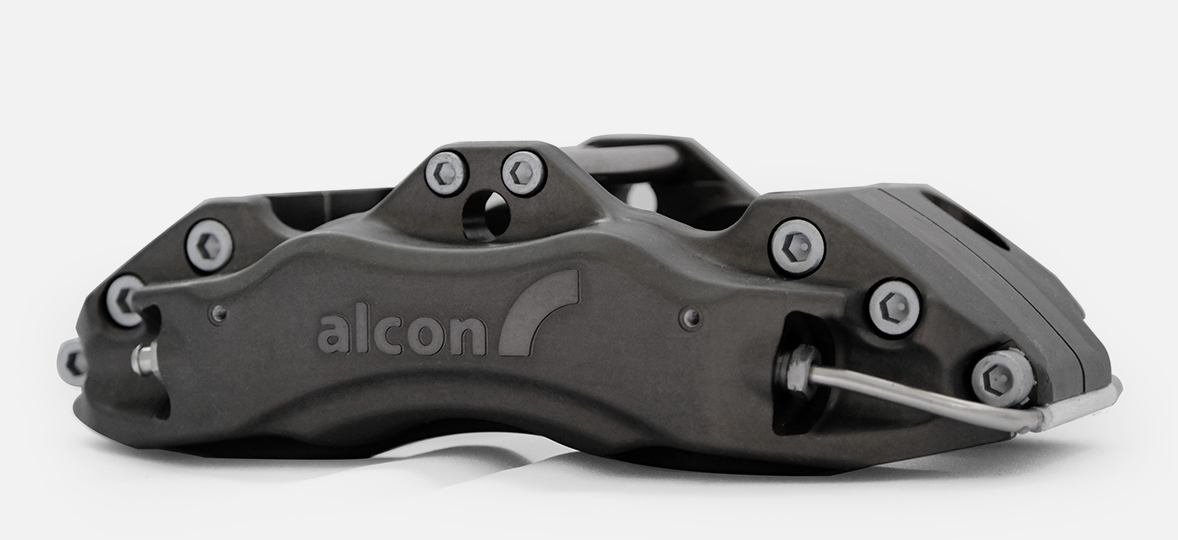

Radial mount for maximum rigidity and firm, consistent pedal.

Differential piston diameters to minimise pad taper wear.

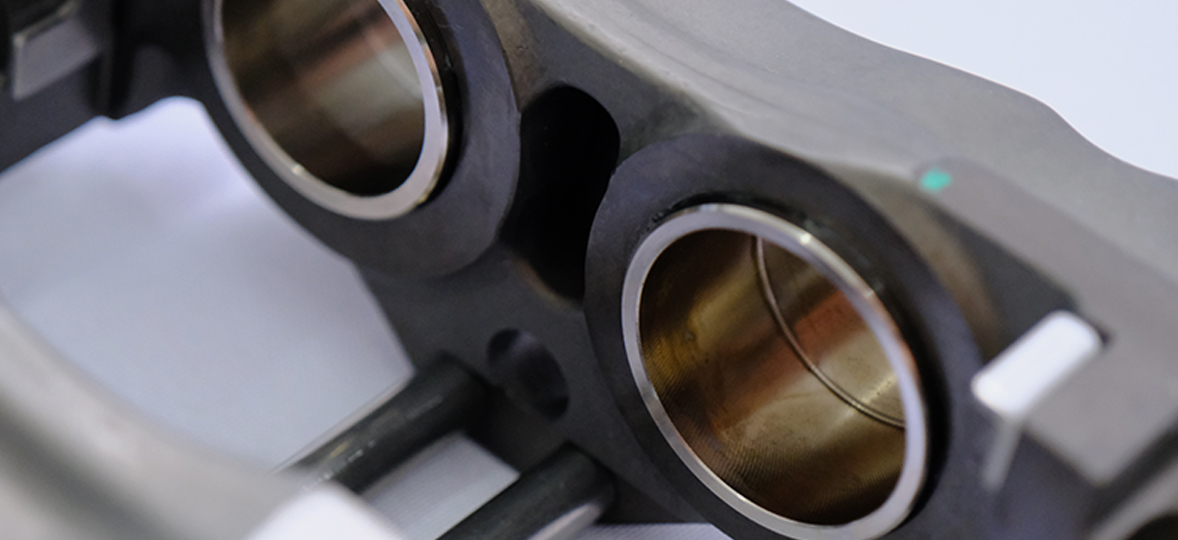

Aluminium pistons as standard, stainless steel pistons available as an option to reduce heat transfer to brake fluid.

2kg anti-knock back springs.

Hard stainless steel wear plates.

Fixed pad retainer.

Disc diameter range Ø285 – 332mm.

Disc thickness range CRB332/30 26 – 30mm.

Disc thickness range CRB332/32 28 – 32mm.

Dry weight 2.40kg excluding pads.

Alcon pad reference 4441 or 4423, 16mm thick, 132mm long, 50mm deep, area 133cm² per caliper.
