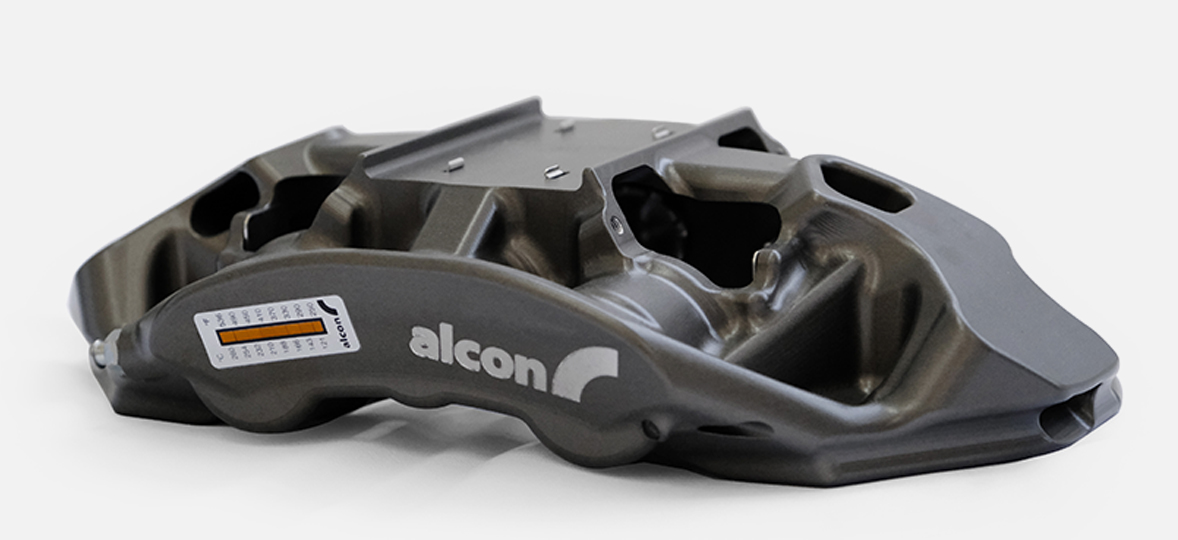

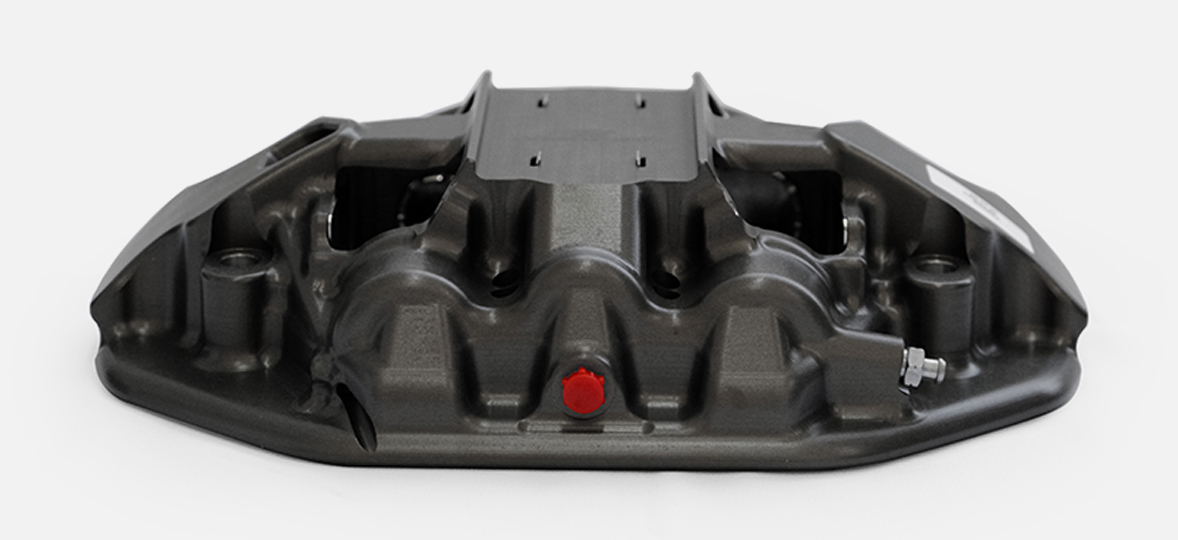

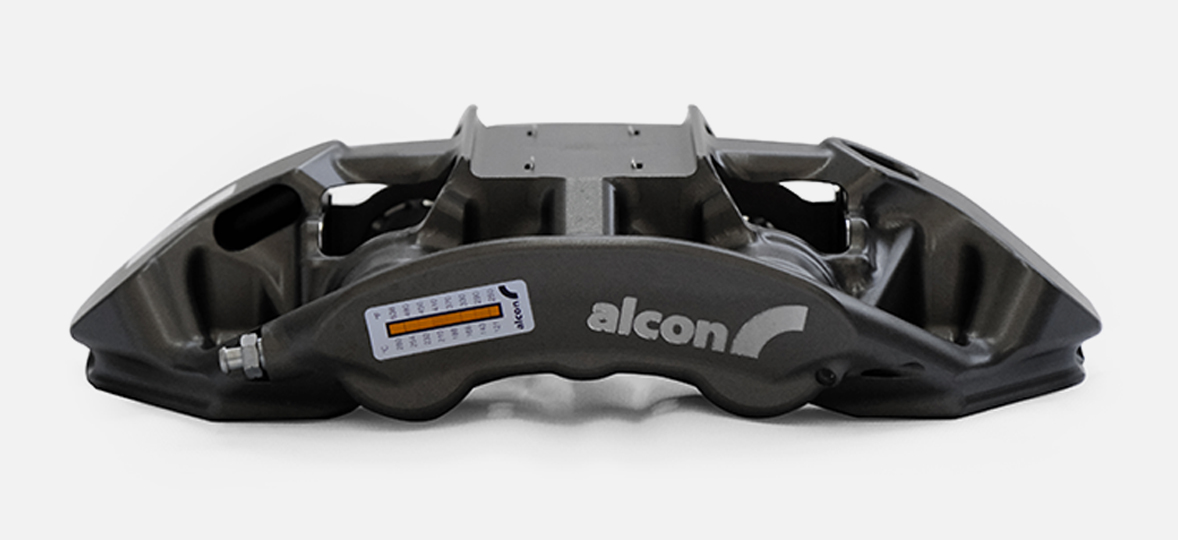

Billet aerospace grade aluminium alloy provides high strength and light weight
Highly optimised design for high stiffness & low weight

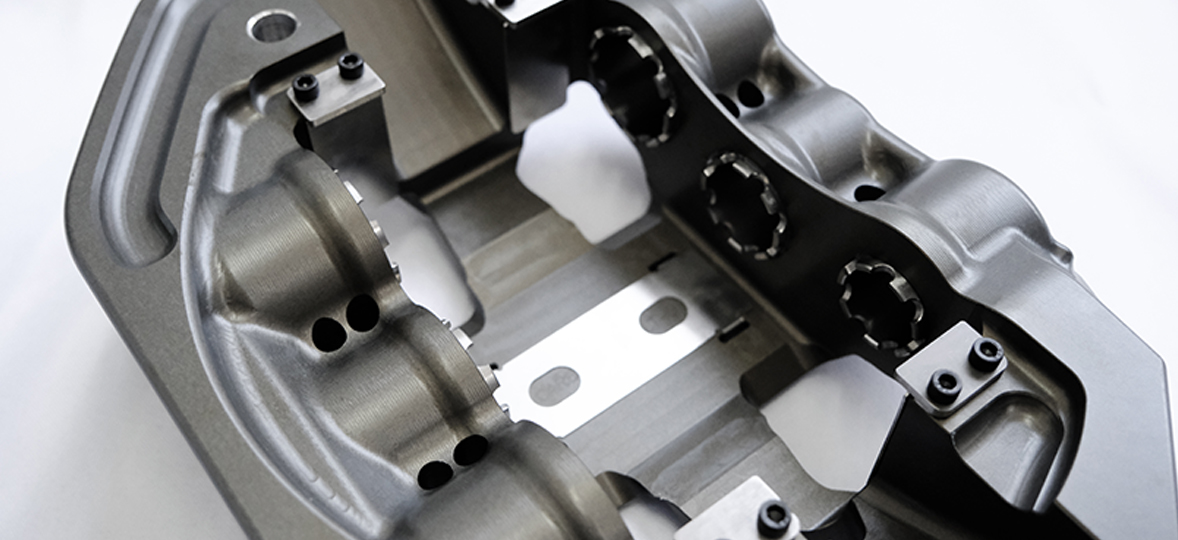

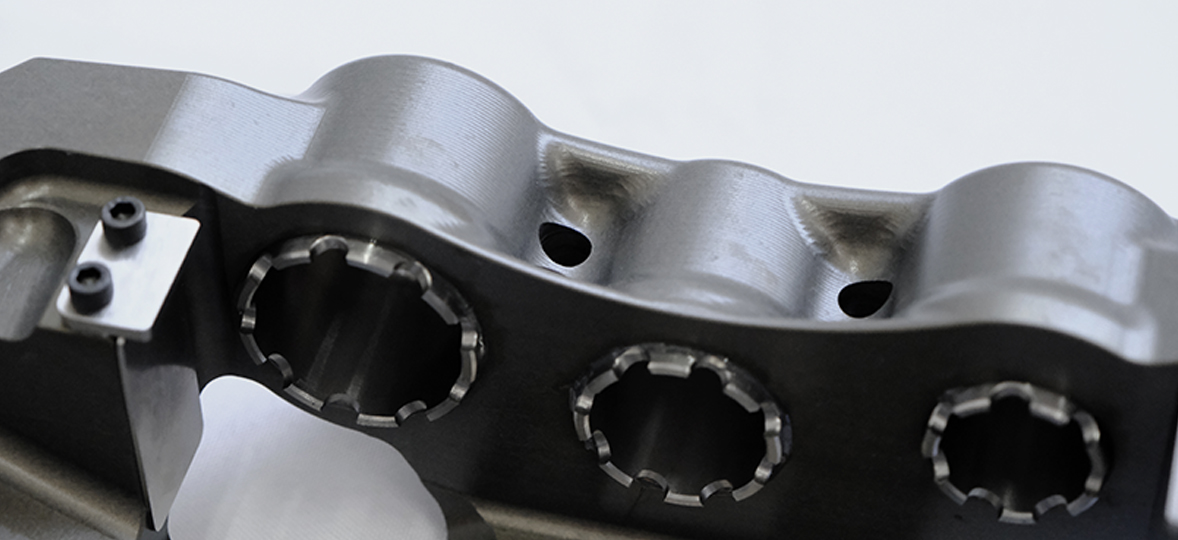

Ventilated stainless steel pistons
Differential piston diameters that minimise pad taper wear
Ø27.0 / 31.8 / 38.1mm bore sizes

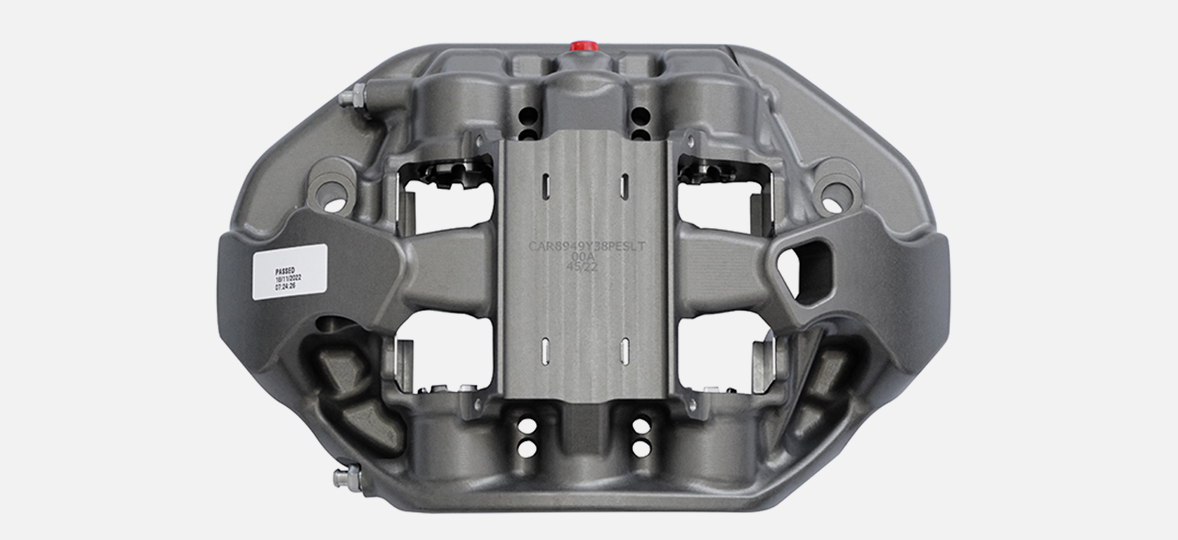

210 x 42mm mounting centres
Semi ducting ready for customer cooling

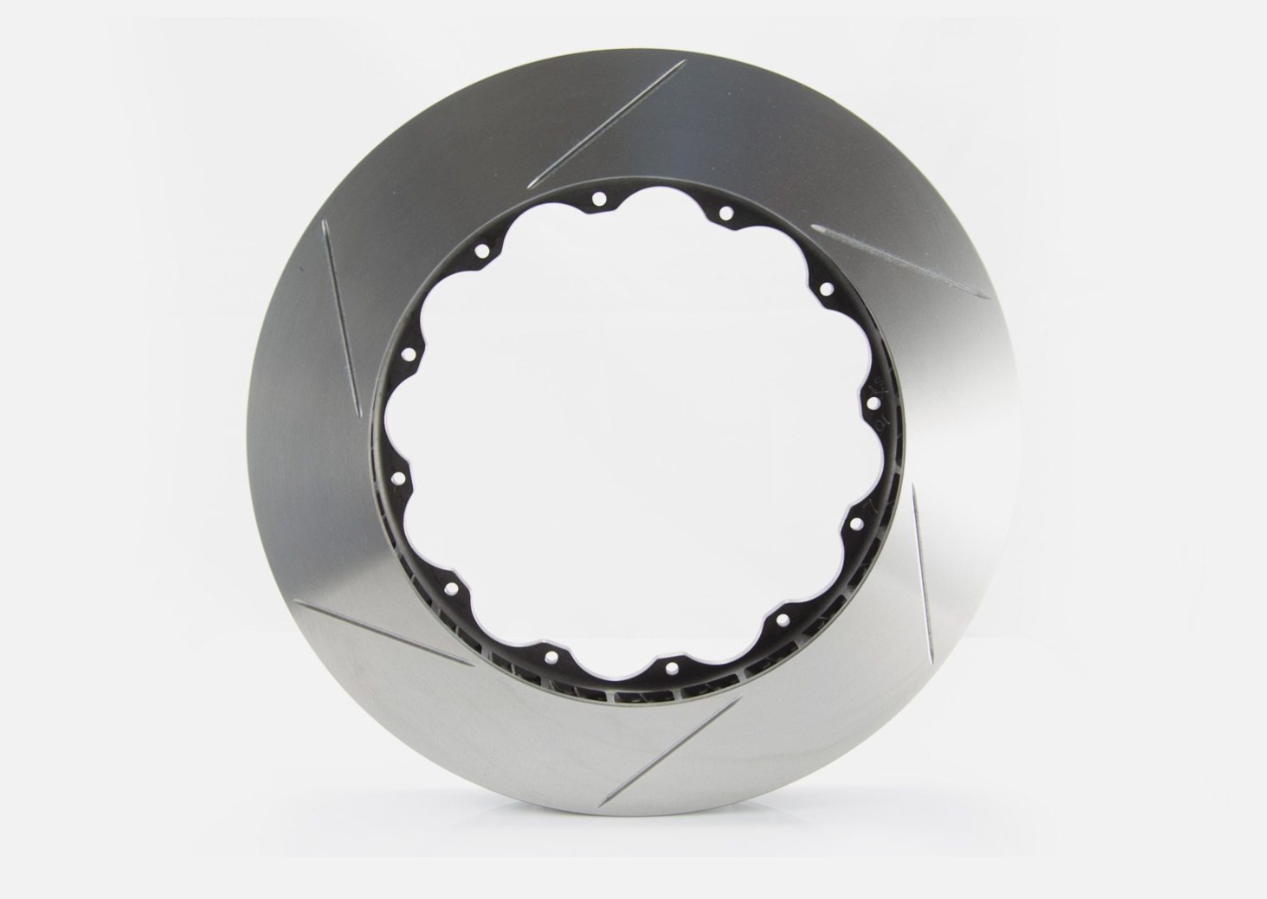

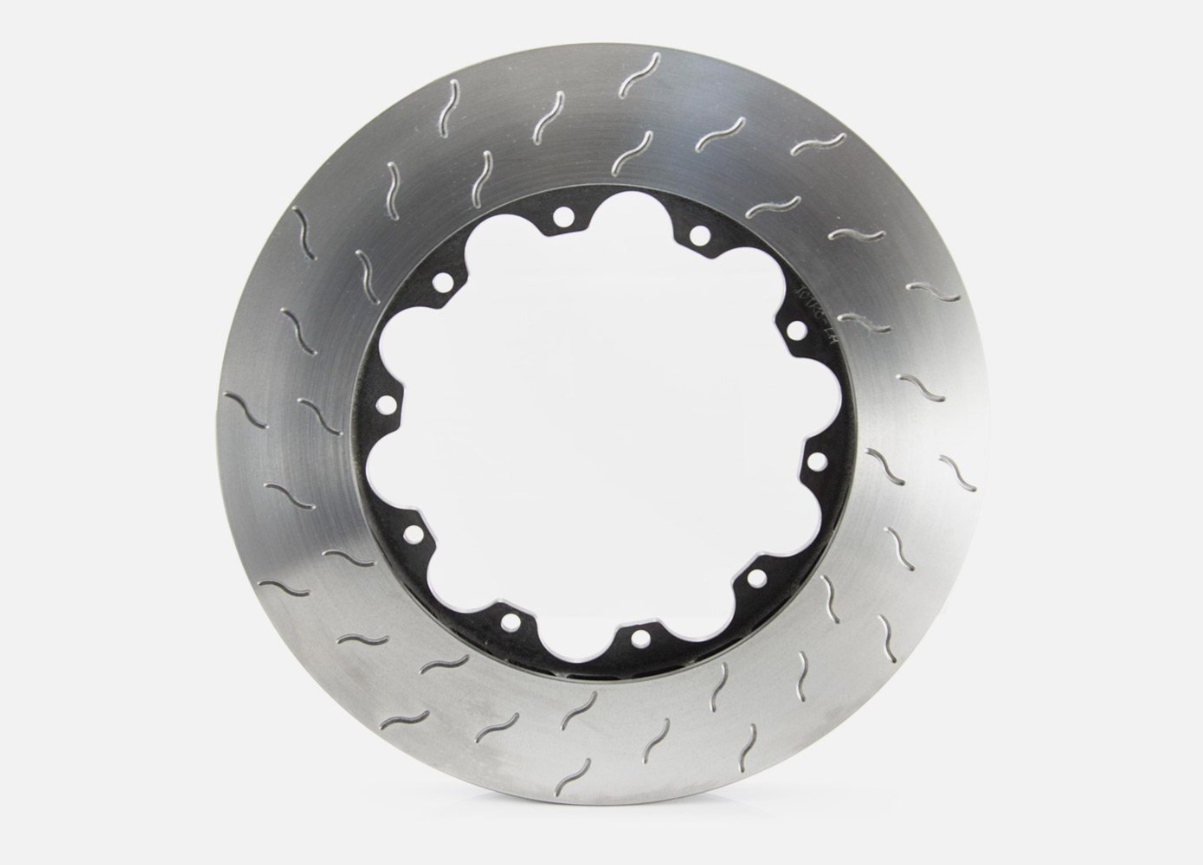

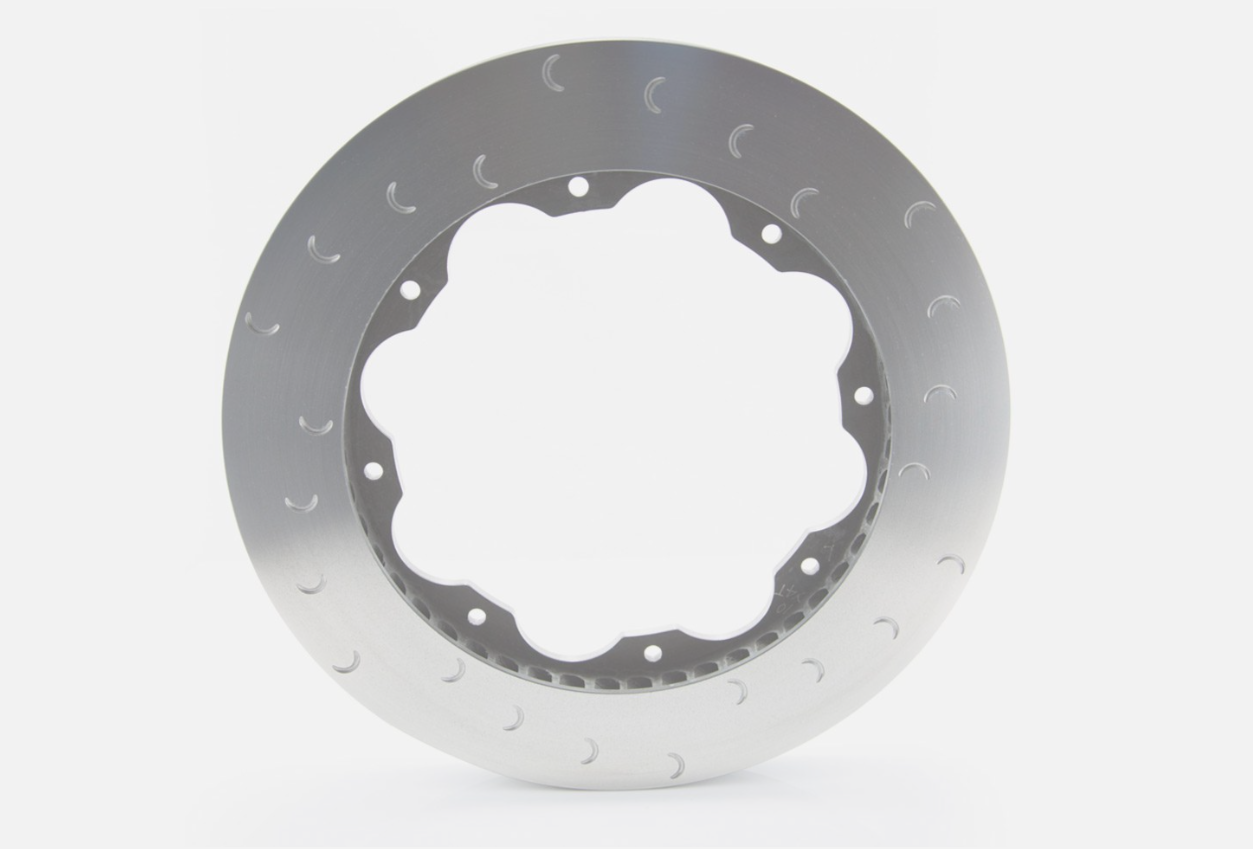

Disc diameter range Ø378 – 380mm
Disc thickness range 32 – 36mm
Dry weight 2.66Kg (excluding pads)
Pads: 18mm and 25mm thickness options, 54mm radial depth, area 60.5cm2
